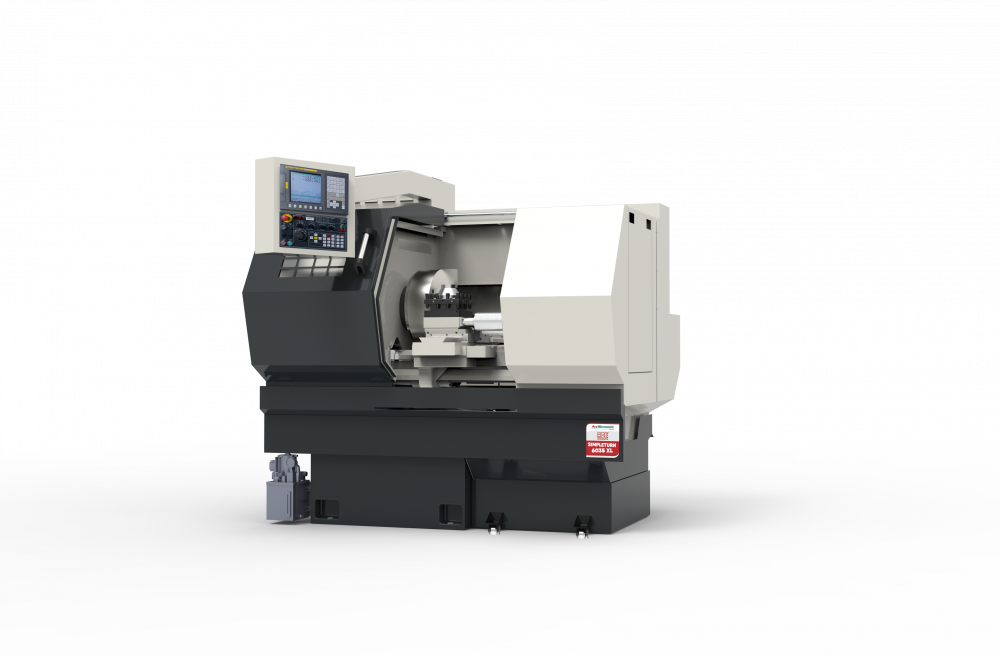

Chucking Machines - Simple Turn 6035 XL
Editorial Highlights
- •The 6035 XL features a rigid double-wall bed construction for superior stability during heavy-duty operations.
- •Equipped with a 9.5 kW spindle motor, this machine delivers an impressive 50 Kgf-m of torque.
- •Advanced dual-layer protection ensures longevity, making it perfect for dry-cutting applications in the casting industry.
This new CHUCKER model from Ace Designers, derived from the popular ‘60’ series, boasts a Ø600 mmswingover bed and features robust Steel ‘V & Flat’ guideways mounted on a rigid bed.The bed itself is of double-wall construction, ensuring enhanced stability and rigidity.
The spindle motor is a 9.5 kW induction motor, which, when paired with the geared headstock, produces an impressive torque of 50 Kgf-m. The machine can accommodate a maximum chuck size of Ø400 mm with a 4-jaw independent chuck.
For added protection and longevity, the axes are equipped with stainless steel guideways, and the ball screw is shielded by an imported Stabilastic cover. This dual-layer protection system prevents chip entry into critical areas, significantly extending the machine’s lifespan. As a result, this model is an ideal choice for the casting industry, particularly for dry-cutting applications. Its compact footprint makes it a highly attractive option for shop managers.
Once the machine is grouted and leveled, its rigidity is assured. This model is well suited for various industries, including job shops utilizing conventional lathes for dry cutting, flange turning, toolrooms, and both the Automotive and Non-Automotive sectors, as well as General Engineering.
Simple Turn 6035 XL, a new variant in the Simple Turn series for Chucking components is being unveiled at RMTS 2024.
Ace Designers Ltd
AceMicromatic Group
www.acemicromatic.net
Hall & Stall: 11/P-1
