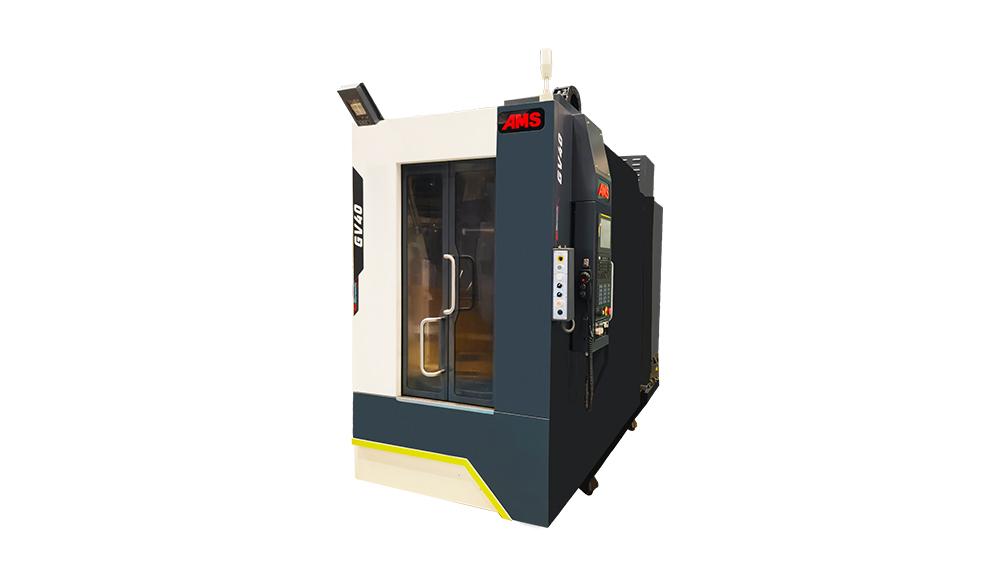

Compact GV40 for Enhanced Productivity

High-performance Drill Tap Center with a small footprint is always a challenge. The solution has emerged as AMS GV 40, a high-performance and high-production Drill Tap Center. It is a compact gantry-type machine with a high-speed, high-torque BBT-30 spindle or Direct Drive HSK A 50 spindle with 20,000 rpm as an option.

The machine is ideally suited for a wide array of component machining applications in the Automotive, Aerospace, and General Engineering industries. It features a Turn Table interface with 5 sec changing time, AI servo tuning, feed-forward function, and smart spindle load control to ensure high productivity and machining accuracies.

 Why AMS from Ace Designers – Machining Centre Division?

AMS is the largest manufacturer of machining centers in India. Ace Designers Machining Centre Division offers a comprehensive range of products for machining components on a Drill Tap Centre (DTC). From Spark to GV40 and DTC-400XL to TCV-540, it provides solutions for machining varied sizes of components. At RMTS 2024, the company is displaying its all-new GV 40 DTC that promises high performance and high production for a wide array of component machining applications. The focus is on maximizing the machining process, increasing flexibility, achieving smooth workflow, and various types of automation.

The GV40 features a table size of 760 mm x 400 mm (2 tables), with a load-carrying capacity of 200 kg each. Its stroke measurements are 500 mm, 400 mm, and 400 mm for the X, Y, and Z axes, respectively. The machine provides a rapid rate of 50 m/min for all three axes. It is equipped with a high-speed spindle reaching up to 12,000 rpm, utilizing an HSK A 50 spindle. The spindle power is robust, offering 18.5 kW, 15 kW, and 11 kW options.

It boasts a compact design, measuring 1,280 mm in width and 3,400 mm in depth. It is equipped with a fully enclosed 26-tool servo-driven automatic tool changer (ATC). Additionally, the machine includes a coolant-through spindle feature for enhanced efficiency. It is integrated with a looping system that supports 4 lines per pallet.

 AceMicromatic Group
Ace Designers Machining Centre Division
www.acemicromatic.net
Hall & Stall: 11/P-1
